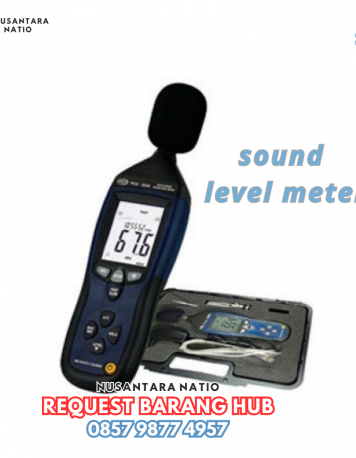

Sound Level Meter RS232 Connect to Computer
The noise meter can be used to measure directly or to save readings
over a long period of time. The data can be transfered to a PC via an
RS-232 connector or by analogue output and analysed in various
formats.
The software that is included allows you to transfer the readings to
other programs so it can be analysed and processed. You can create
diagrams, columns and view the peak values. The zoom function
allows for a closer analysis of each reading.
The software is also useful to programme settings for measurements
over long periods of time.
RS-232 cable to transmit data
Software compatible with Windows 95, 98, 2000 and XP
Internal memory for 32,000 values
Minimum and maximum functions
Resolution of 0.1dB
35mm LCD display with graphic divisions of 2dB (unto 100dB)
Frequency weighting: A and C
Frequency range of 31.5 Hz to 8 kHz
Real-time clock with calendar
ABS enclosure
Specifications
Automatic range : 30 to 130dB
Manual ranges : 30 to 80dB 40 to 90dB
50 to 100dB 60 to 110dB
70 to 120dB 80 to 130dB
Resolution : 0.1dB
Accuracy : ±1.5dB
Measuring rate : every 0.5s
Frecuency : 31.5 Hz to 8k Hz
Data Logger : 32,000 readings
Frequency weighting : A and C
Display : 35mm LCD with graphic representation
Operating conditions : 0 to 40°C, < 80% r.h.
Power : 9V battery PP3
Dimensions : 265 x 72 x 21 mm
Standard : IIEC 651 type II (class II)
Sound Level Meter RS232 Connect to Computer
Berat | 2500 gram |
Kondisi | Baru |
Dilihat | 233 kali |
Diskusi | Belum ada komentar |
